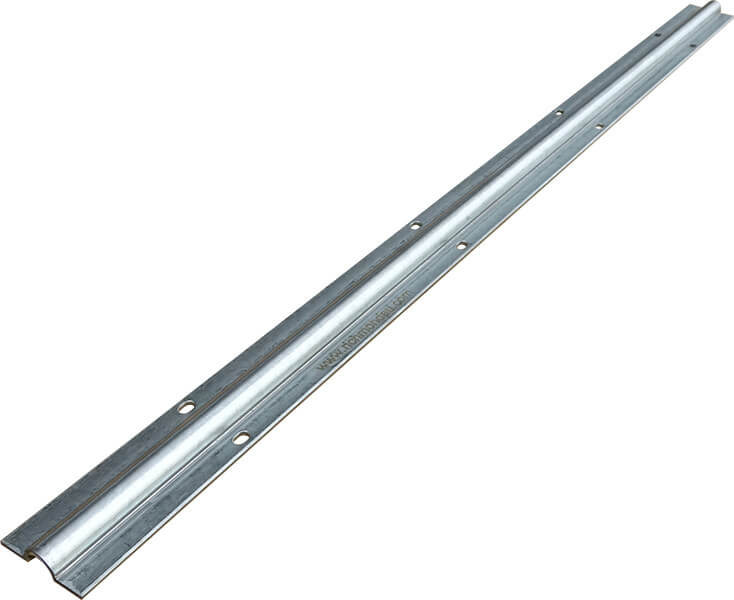

1m Bolt Down Sliding Gate Track - Galvanised (GTR091)

L: 55mm

L1: 250mm

R: 13.5mm

S: 3.5mm

A: 11mm

B: 6.6mm

C: 40mm

H: 15mm

Fixing Holes: 8
Fasteners Required: 8

Fastener options:

The GTR091 can be mounted using Anchor Bolts or Drive Anchor Pins to secure it to the ground. Below is a list of fasteners that Richmond can supply for mounting your sliding gate track.

Anchor Bolts for mounting gate track

Drive Anchor Pins for mounting gate track

Richmond can also supply a 6.5mm Drill Bit (GTR178) to drill the holes for the Drive Anchor Pins and Anchor Bolts to be placed in the ground.

Galvanised sliding gate track to suit the track wheels above. There are many benefits to using bolt down track instead of the concrete in alternative. Besides the ease of installation on existing concrete driveways, it is a simple process to replace a section of the track if damage was to occur in future.
