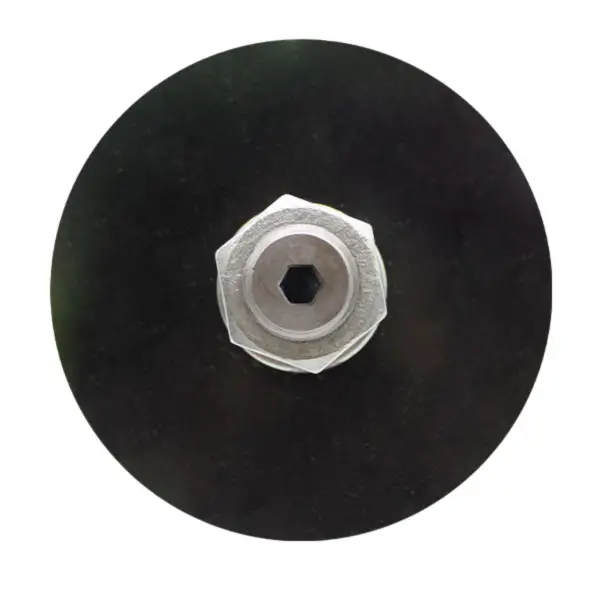

155mm Beam Trolley Track Wheel 36mm Axle Diameter (BT155)

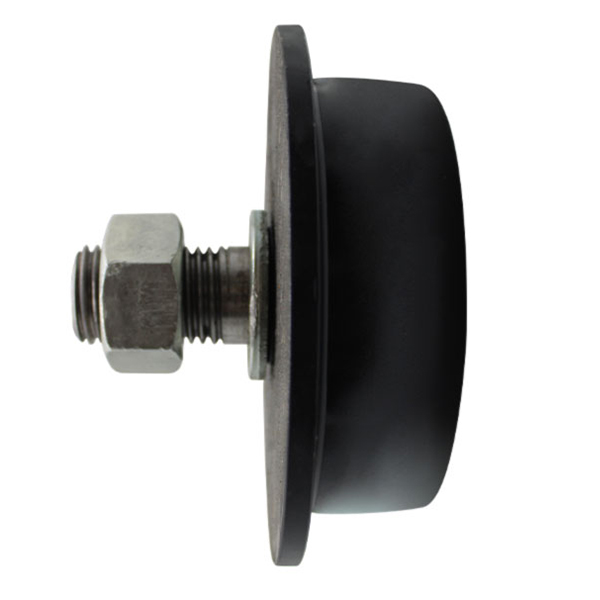

155mm Beam Trolley Track Wheel 36mm Axle Diameter (BT155) - Image 2

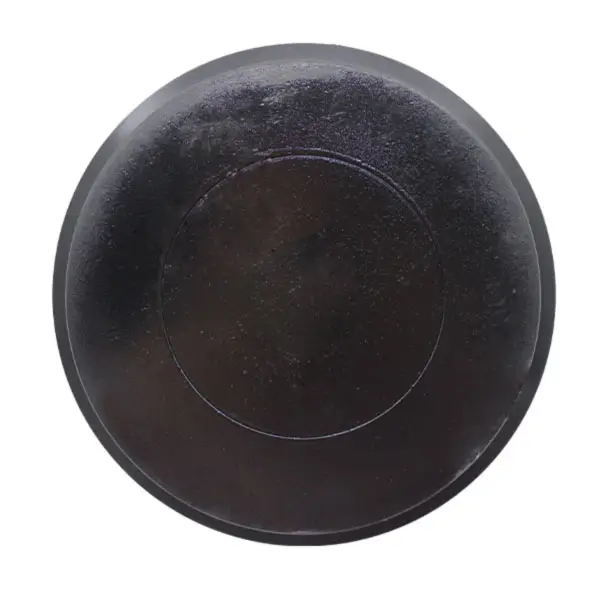

155mm Beam Trolley Track Wheel 36mm Axle Diameter (BT155)

Beam trolley wheels are often seen on overhead cranes and carriages, movable platforms, construction, assembly lines, storage systems, heavy duty applications, building applications and manufacturing process systems. Our standard range of beam trolley wheels has been designed to fit standard channel and beam sections.

Wheel: 155mm diameter x 42mm wide rim
Flange: 190mm diameter x 10mm width
M36 axle bolt with hexagon recess for reliable adjustment
1250kg Load Capacity
Black painted SG Iron finish
Double row angular contact ball bearings for increased the load capacity and side loading capacity compared to traditional beam trolley wheels with single row ball bearings.

We can also custom manufacture beam trolley wheels to suit your application. Contact our expert team for more information

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	BT155
Wheel Diameter (mm)	155
Rim Width (mm)	43
Flange Diameter (mm)	190
Flange Width (mm)	10
Material	SG Iron
Axle Thread	M36
Load Capacity (kg)	1250

Download CAD Drawing (STEP file)	Download

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
