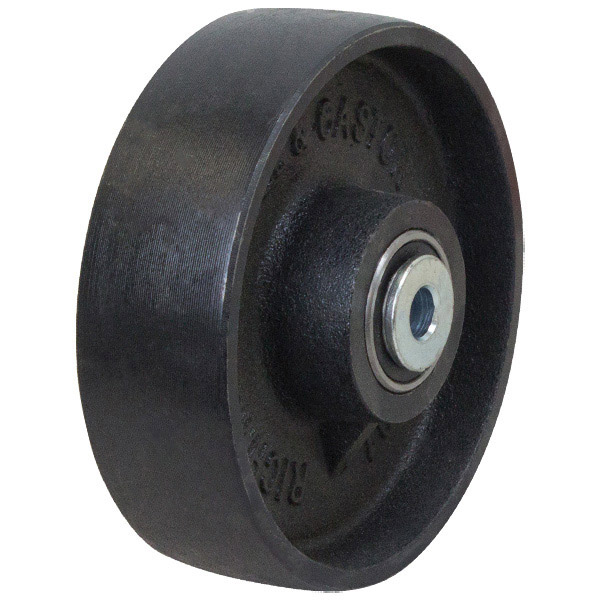

150mm Cast Iron Wheel | 20mm Axle Diameter (Ci601-M20)

Richmond Cast Iron wheels are consistently used by industry because of their extremely low resistance to rolling and their hard wearing characteristics. Cast iron can be used on surfaces where tyred wheels could not such as over broken glass however cast iron is known to damage concrete floors over time.The Ci601-M20 from Richmond Rolling Solutions is a 150mm diameter cast iron wheel that can hold loads up to 1000kg and has a tyre width of 45mm.The following Richmond castors use this wheel (not necessarily with the same axle diameter) R6319, S6318, R6241, S6240, S6240D, R632SG, S631D, S631SG.This wheel is designed to suit 20mm axles and this wheel is available for the following alternative axle size: 1/2 inch (12.7mm), 5/8 inch (15.87mm), 3/4 inch (19.05mm), 25mm

View Specifications View Specifications Shipping Information

Specifications

Product Code	Ci601-M20
Wheel Diameter (mm)	150
Tyre Width (mm)	45
Boss Width (mm)	60
Axle Diameter	20mm
Wheel Bearing Type	Ball Bearing
Maximum Load Capacity (kg)	1000

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
