150mm Rubber Wheel 225kg Capacity Castor (S6760)

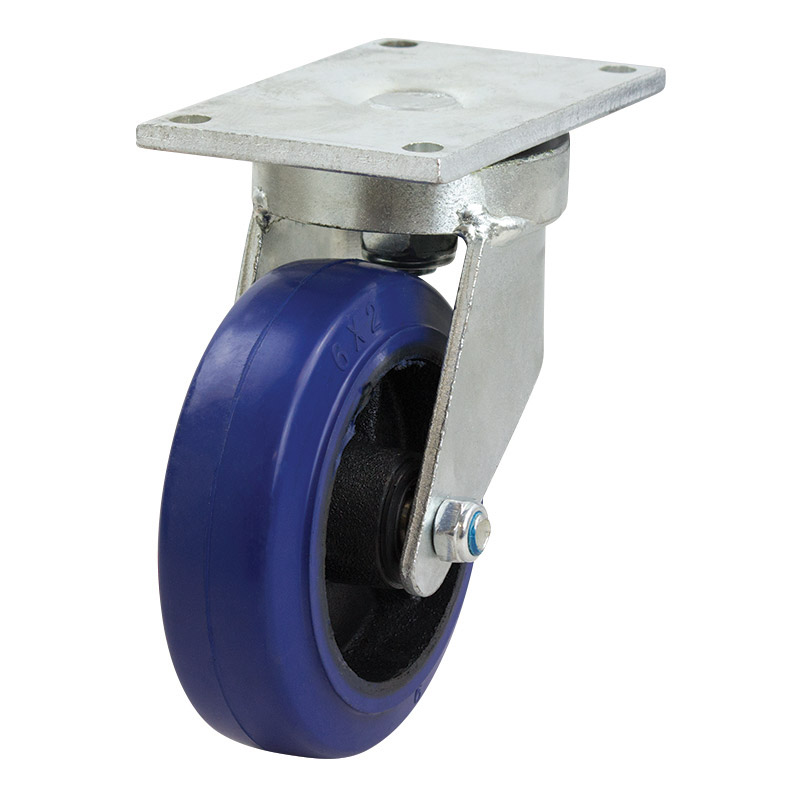

The S6760 by Richmond Rolling Solutions is a swivel frame castor and has a rubber wheel. This swivel castor is part of our 500 series range and can safely take loads up to 225kg. The S6760 is assembled with roller bearings on the castors axle. The swivel frame design of this castor allows the castor to swivel 360°. The overall rubber wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: RT6642).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S6760
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT6642
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	194
Swivel Radius (mm)	130
Maximum Load Capacity (kg)	225
recommended-load-capacity-kg
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
