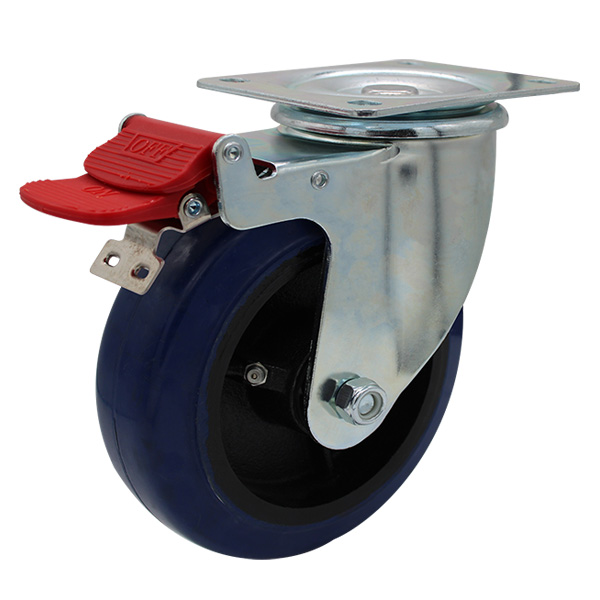

150mm Rubber Wheel 225kg Capacity Castor (S6040B)

The S6040B manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a rubber wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 225kg. The S6040B is assembled with roller bearings on the castors axle and is baseplate mount. The swivel frame of this castor allows the load to be steered. The rubber wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: RT6642). To order this castor without a brake, search for S6040.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S6040B
Wheel Diameter (mm)	150
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT6642
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	187
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	225
Recommended Load Capacity (kg)	200
