150mm Rubber Wheel 225kg Capacity Castor (R6761)

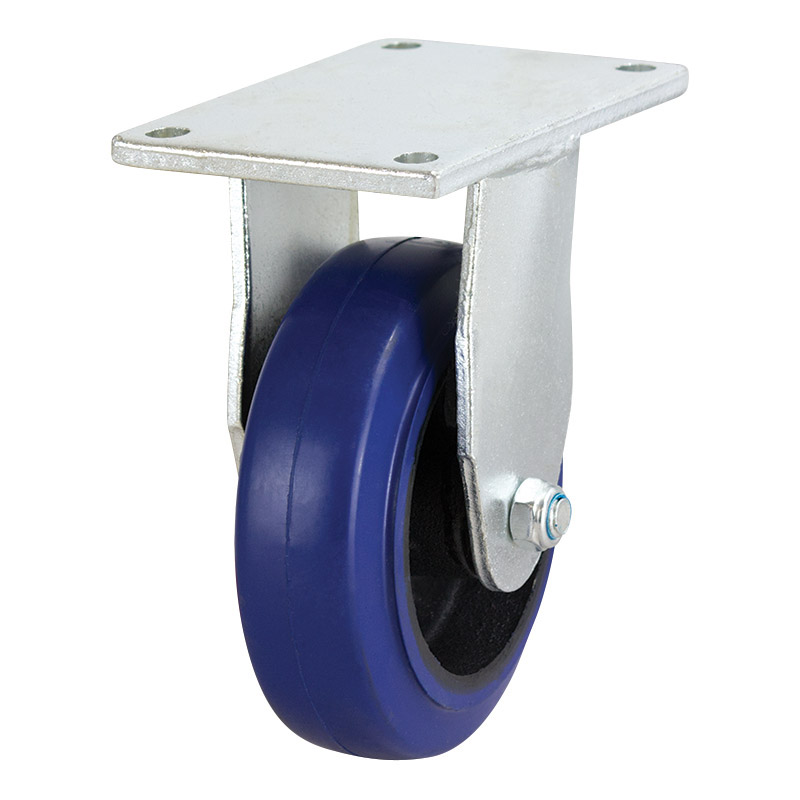

The R6761 manufactured by Richmond Rolling Solutions is a rigid frame castor and has a rubber wheel. This rigid castor is part of our 500 series range and can hold loads up to 225kg. The R6761 is assembled with roller bearings on the castors axle. The rigid frame design of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rubber wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: RT6642).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6761
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT6642
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	194
Maximum Load Capacity (kg)	225
Recommended Load Capacity (kg)	200
Towable	No
