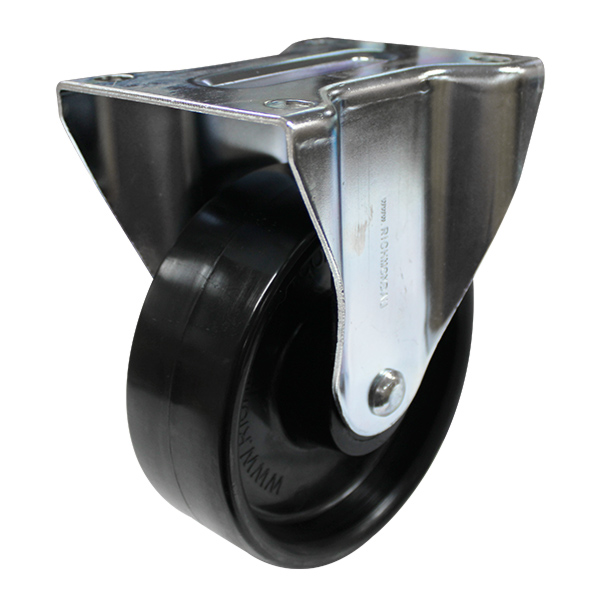

150mm Nylon wheel 300kg capacity Castor (R6033)

The R6033 manufactured by Richmond is a rigid frame castor and features a nylon wheel. This rigid castor is part of our 300 series plate range and has a maximum capacity of 300kg. The diameter of the nylon wheel is 150mm, the wheel width is 50mm and can be ordered separately (NY652).

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R6033
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY652
Wheel Bearing Type	Plain Bore
Castor Height (mm)	187
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Download CAD Drawing (STEP file)	Download

Rigid
