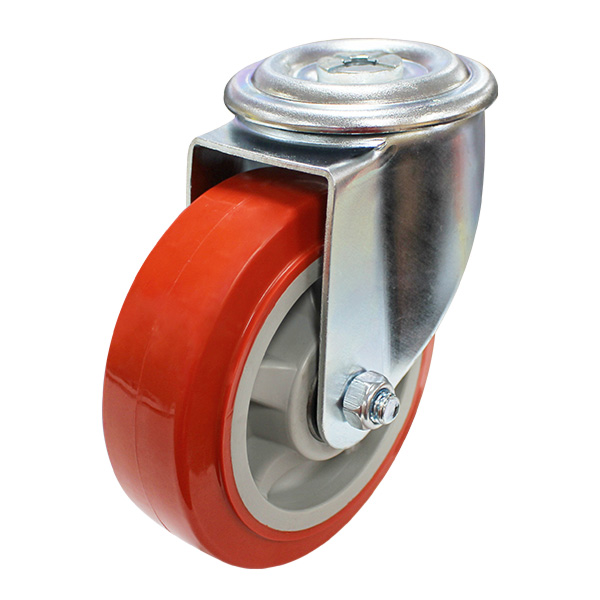

150mm Polyurethane Tyre on Aluminium Centre Bolt Hole 300 Series Castor (S6226)

The S6226 manufactured by Richmond is a swivel frame castor and features a poly nylon wheel. This swivel castor is one of our 300 series bolt hole range and has a top load capacity of 300kg. The S6226 wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame allows the castor to swivel 360°. The diameter of the poly nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU6071). For the same castor with a brake, see S6226B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S6226
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Aluminium Centred
Wheel Code	PU6071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	181
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	250

12mm Bolt Hole

Swivel
