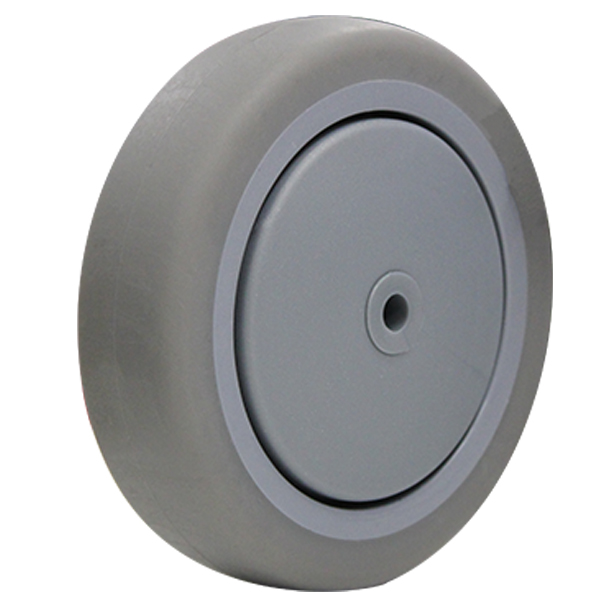

125mm Institutional Rubber Wheel | 5/16" Axle Diameter (IR5007-31)

Our institutional rubber wheels are made from non marking grey rubber and are suited to light loads.The IR5007-31 by Richmond Rolling Solutions is a 125mm diameter institutional rubber wheel that can hold loads up to 100kg and has a tyre width of 32mm.The following Richmond castors use this wheel (not necessarily with the same axle diameter) R5526, S5525, S5525B.This wheel is designed to suit 5/16 inch (7.94mm) axles and this wheel is available for the following alternative axle size: 3/8 inch (9.52mm).

View Specifications View Specifications Shipping Information

Specifications

Product Code	IR5007-31
Wheel Diameter (mm)	125
Tyre Width (mm)	32
Boss Width (mm)	41
Axle Diameter	5/16 inch (7.95 mm)
Wheel Bearing Type	Ball Bearing
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
