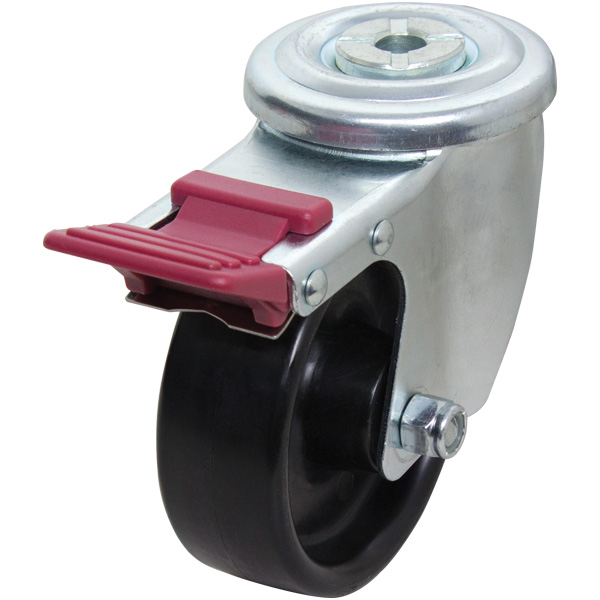

125mm Nylon Bolt Hole 300 Series Castor (S5222B)

The S5222B from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S5222B is assembled with plain bearings on the castors axle and is mounted with a bolt. The swivel frame allows the castor to swivel 360°. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). For the same castor without a brake, see S5222.

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5222B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY501
Wheel Bearing Type	Plain Bore
Castor Height (mm)	157
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Swivel with Brake
