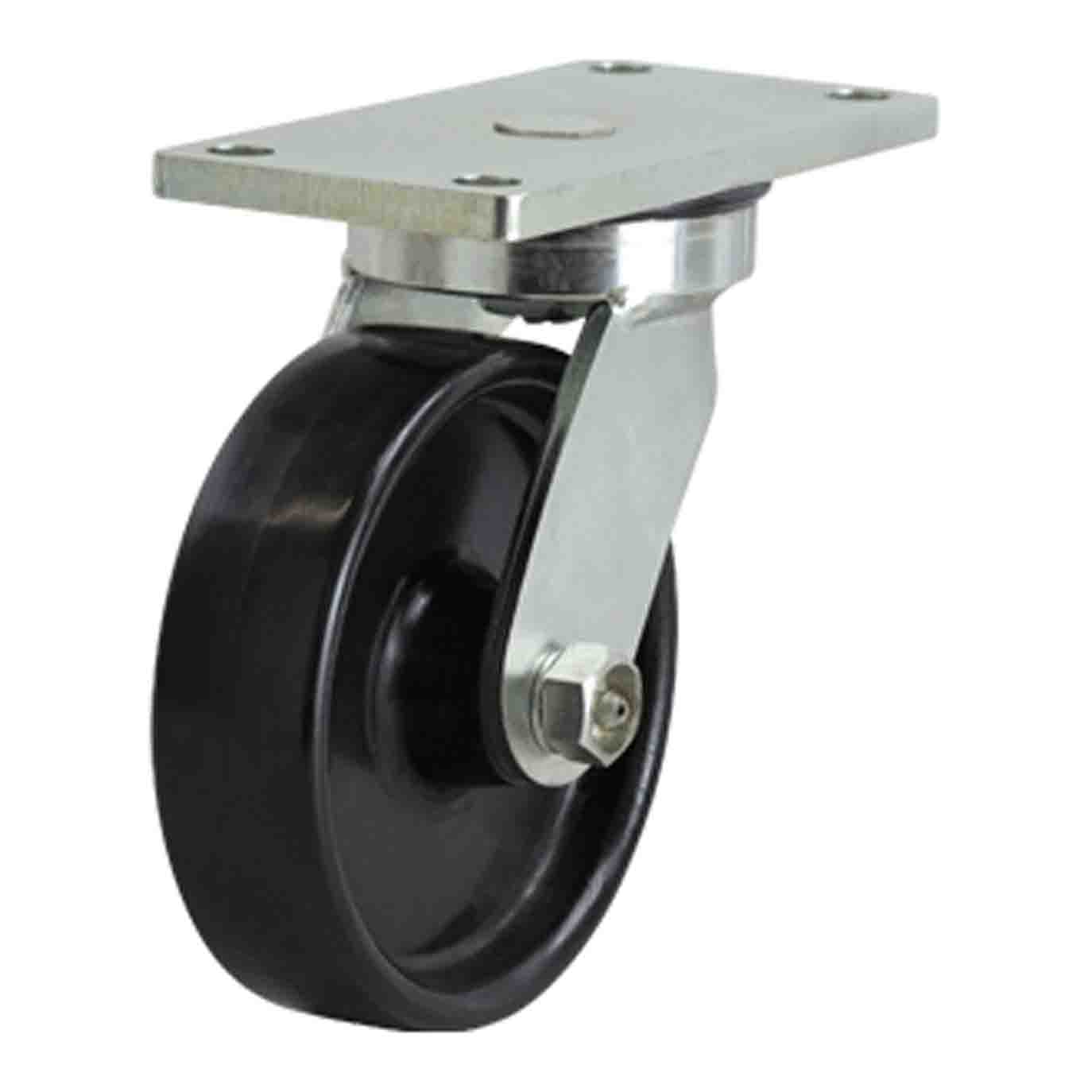

125mm Nylon Wheel 330Kg Capacity Castor (S516NY)

The S516NY from Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is in our heavy duty welded series range and can hold loads up to 330kg. The S516NY wheel is fitted with ball bearings. The swivel frame allows for full 360° swivel rotation. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY513).

View Specifications View Specifications Shipping Information

Specifications

Product Code	S516NY
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY513
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	102
Maximum Load Capacity (kg)	330
Recommended Load Capacity (kg)	250
