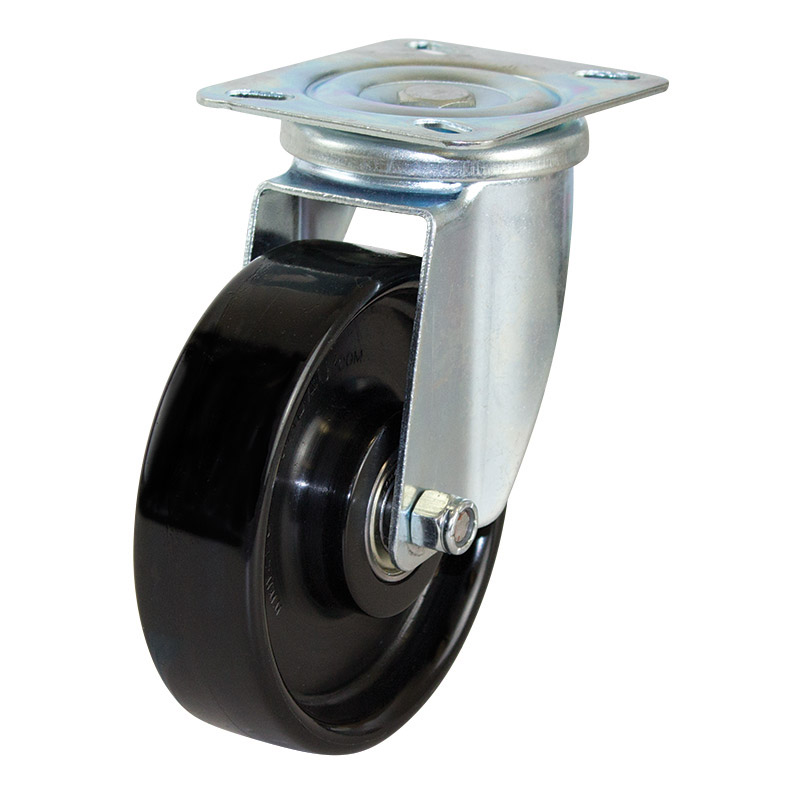

125mm Nylon Wheel 200kg Capacity Castor (S5034)

The S5034 manufactured by Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 200kg. The S5034 wheel is fitted with ball bearings and is baseplate mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY513). To order this castor with a brake, search for S5034B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S5034
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY513
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Swivel Radius (mm)	112
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
