125mm Nylon Wheel 100kg Capacity Castor (S5590B)

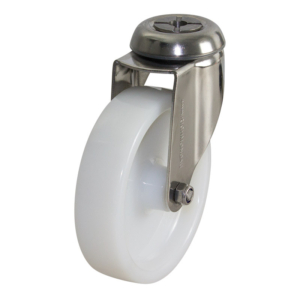

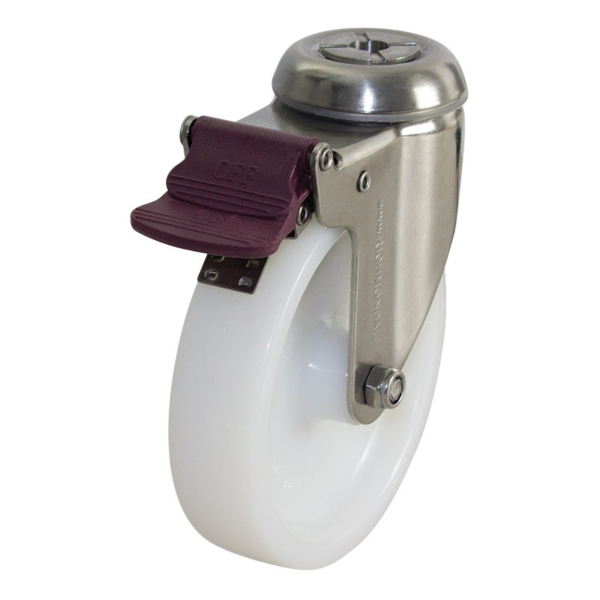

The S5590B by Richmond is a swivel frame castor and has a nylon wheel. This swivel castor is one of our stainless steel elite bolt range and has a maximum capacity of 100kg. The S5590B is assembled with plain bearings on the castors axle and is bolt mount. The swivel frame of this castor allows for full 360° swivel rotation. The nylon wheel diameter is 125mm, the wheel width is 30mm and you can order separately (Part Number: NY5517). For the same castor without a brake, see S5590.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code	S5590B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY5517
Wheel Bearing Type	Plain Bore
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
