100mm Polyurethane Tyred Cast Iron Centred Wheel | 1/2" Axle Diameter (PU425-50)

100mm Polyurethane Tyred Cast Iron Centred Wheel | 1/2" Axle Diameter (PU425-50)

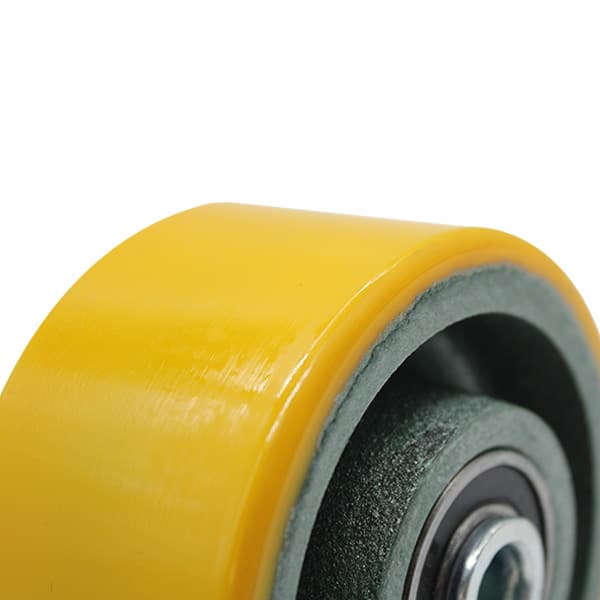

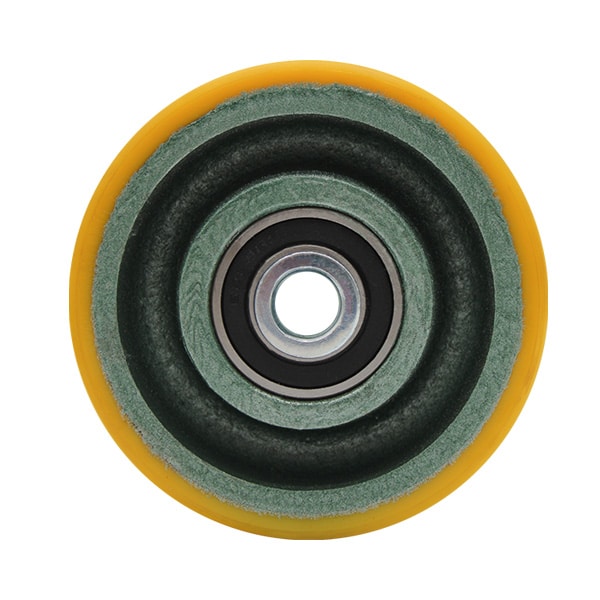

The PU425-50 manufactured by Richmond is a 100mm diameter polyurethane tyred cast iron centred wheel with a top load capacity of 500kg and has a tyre width of 50mm. The following Richmond castors use this wheel (not necessarily with the same axle diameter) R4271, S4270. This wheel is designed to suit 1/2 inch (12.7mm) axles and this wheel is available for the following alternative axle size: 5/8 inch (15.87mm), 3/4 inch (19.05mm), 17mm, 20mm.

View Specifications View Specifications Shipping Information

Specifications

Product Code	PU425-50
Wheel Diameter (mm)	100
Tyre Width (mm)	50
Boss Width (mm)	63
Axle Diameter	20mm
Wheel Bearing Type	Ball Bearing
Maximum Load Capacity (kg)	500

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
