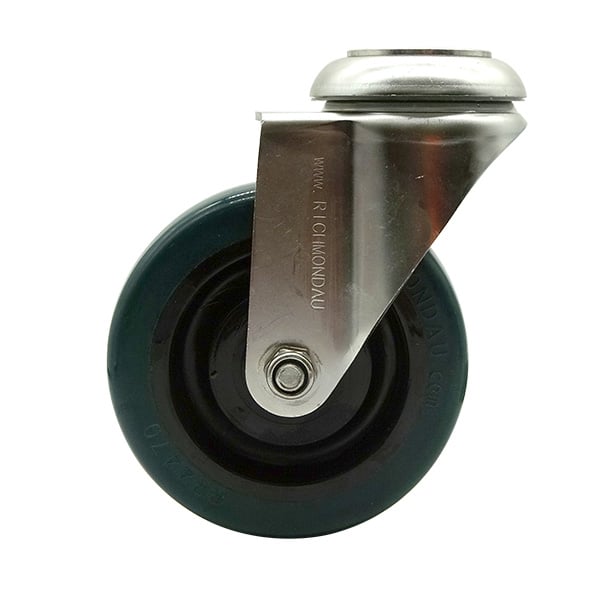

100mm Rebound Rubber Swivel Castor (S4418)

100mm Rebound Rubber Swivel Castor (S4418) - Image 2

100mm Rebound Rubber Swivel Castor (S4418)

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S4418
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Rebound Rubber
Wheel Code	RR4367
Wheel Bearing Type	Plain Bore
Castor Height (mm)	133
Swivel Radius (mm)	70
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Grade 304 Stainless Steel

Swivel
