100mm Nylon Wheel 200kg Capacity Castor (S4146)

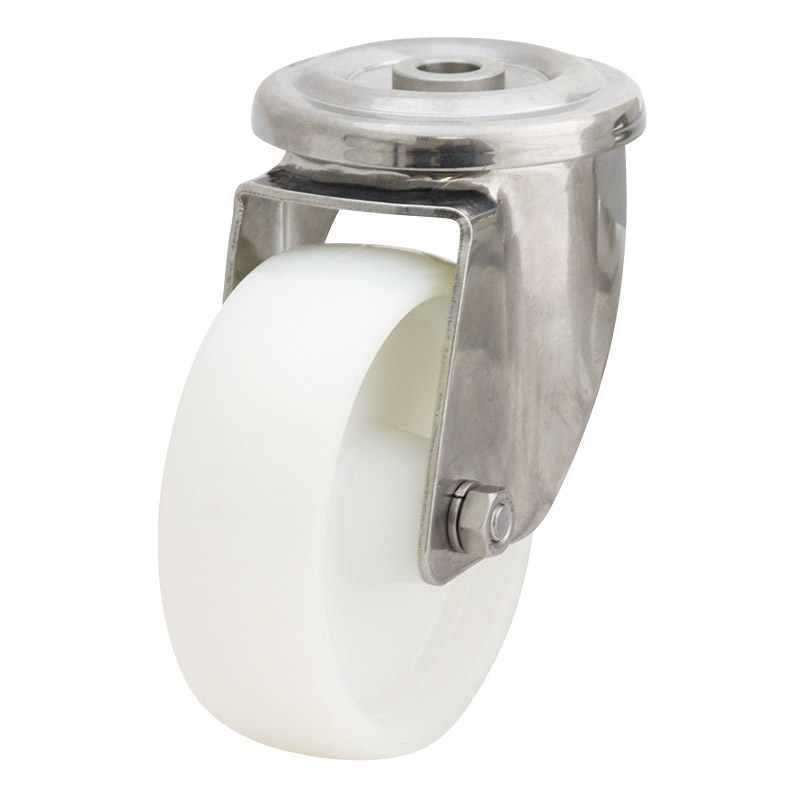

The S4146 by Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our stainless steel excel bolt range and has a top load capacity of 200kg. The S4146 is assembled with plain bearings on the castors axle and is mounted with a bolt. The swivel frame permits the load to be steered. The diameter of the nylon wheel is 100mm, the wheel width is 35mm and can be ordered separately (NY401). To order this castor with a brake, search for S4146B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Heavy duty pressed stainless steel frame combined with full stainless componentry make the Excel Series the ideal choice for use in wet areas, frequent wash down applications and food and health industries. When hygiene is of the utmost importance, this bolt hole castor has the ability to be fitted to an array of equipment and trolleys with various fittings including; pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt.

Product Code	S4146
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
