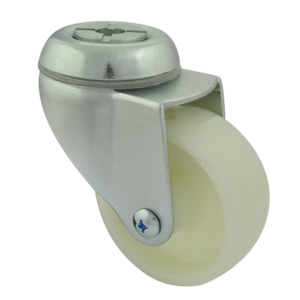

100mm GF Nylon Swivel Single Bolt Castor (S4463)

100mm GF Nylon Swivel Single Bolt Castor (S4463)

Ideal for use on mobile equipment in hospitals, nurseries, shops, industry and catering equipment the single bolt zinc durolite series can be fixed with a range of fittings to round or square tubing ensuring maximum functionality and performance. Available in a various colours for an aesthetically enhanced appearance designed to blend in with the equipment. This castor features a twin race swivel action for long life with pressed metal frame and zinc plated finish.

View Specifications View Specifications Shipping Information

Specifications

Product Code	S4463
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Glass Filled Nylon
Wheel Code	GF4420
Wheel Bearing Type	Plain Bore
Castor Height (mm)	133
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

12mm Bolt Hole

Swivel

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
