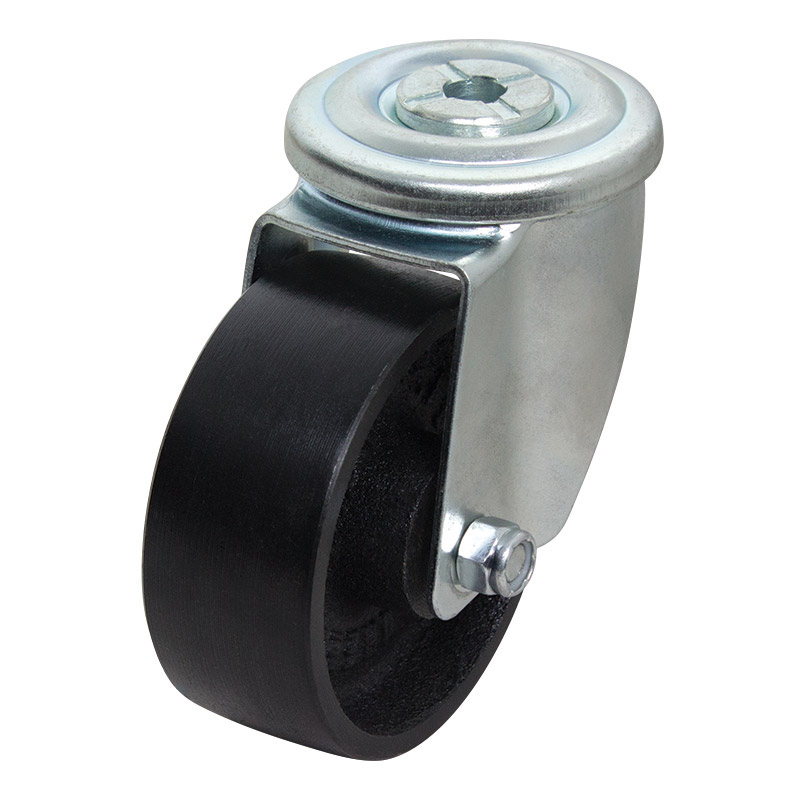

100mm Cast Iron Bolt Hole 300 Series Castor (S4234)

200kg load capacity
Cast iron wheel
Suitable for extreme temperature ranges between -30°C-300°C
100mm diameter, 36mm width, can be ordered separately (Part Number: Ci421)

This castors frame is a swivel frame which allows the castor to swivel or rotate 360° so the load may be steered.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4234
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci421
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
Temperature range (°C)	-30° to 280°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
